Take snapshot from webcam using Silverlight 4 Webcam API

I have Webcam attached to my Laptop, but I’m not able to capture still images from it on Windows 7. I tried Youcam from Cyberlink it’s good but not freely available then I decide to build my own application for capturing images from my webcam.

As we know that Silverlight 4 has Webcam, Microphone and other good APIs built in so I decided to build my application with Silverlight 4, so in this post I’ll show you how you can capture images from your webcam and save it.

So let’s start by creating new Silverlight Application by opening Visual Studio 2010 or Visual Web Developer 2010 Express which is freely available, click File –> New Project

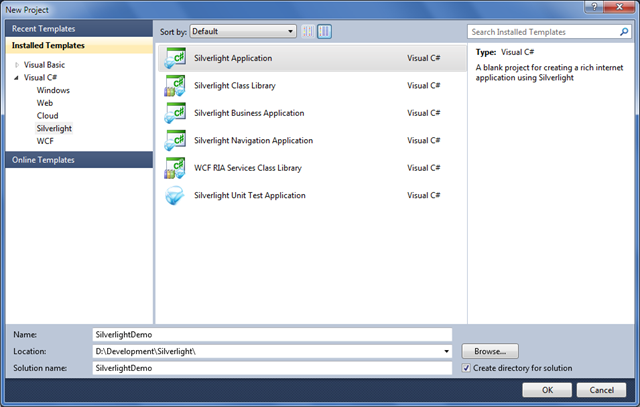

In the New Project dialog, select Silverlight in Installed Templates section from the Left pane and select Silverlight Application, as you hit ok button a new dialog appears asking you “if you want to create new ASP.NET Web application or ASP.NET MVC application”. See the screenshot below:

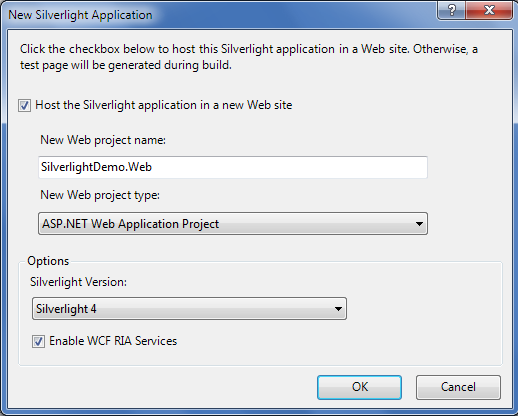

As shown above the dialog is straight forward and easy to understand, just have settings as shown and hit ok button, you now have Silverlight application ready to work with.

Our application will look like this when completed in the designer:

What are we waiting for let design the application first in the xaml designer. The application UI is very simple you see in the screenshot I have two comboBox on top, one for holding VIDEO devices and second for AUDIO devices available in the machine, we can fill these two comboBox within our code, in the center of the UI you see white large box which is for displaying our Webcam live feed, I add three buttons for different purposes, “Start Camera” is used to enable webcam, this same button is also used to disable webcam, “Capture Image” is used to capture current frame from the live webcam feed which is in raw format as WriteableBitmap, finally last button “Save Image” is used to save captured frame in jpg format. On the bottom of the application there is a ListBox which holds our captured raw frames from the webcam, which is bind to ObseravableCollection<WriteableBitmap>.

To design exactly as shown above, just copy and paste the following xaml markup in your MainPage.xaml file

<UserControl x:Class="SilverlightDemo.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d"
    d:DesignHeight="600" d:DesignWidth="600">

    <Grid x:Name="LayoutRoot" Background="#FF333333">
        <StackPanel HorizontalAlignment="Center" VerticalAlignment="Center">
            <TextBlock Foreground="White" FontSize="18" HorizontalAlignment="Center">Silverlight 4 Webcam and Microphone Demo</TextBlock>
            <Grid Width="500">
                <Grid.RowDefinitions>
                    <RowDefinition />
                    <RowDefinition />
                    <RowDefinition />
                    <RowDefinition />
                </Grid.RowDefinitions>
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="250" />
                    <ColumnDefinition Width="250" />
                </Grid.ColumnDefinitions>
                <TextBlock Foreground="White" Margin="5" Text="Available VIDEO Sources" Grid.Column="0" Grid.Row="0"></TextBlock>
                <ComboBox x:Name="VideoSources" Grid.Column="0" Grid.Row="1" Margin="5">
                    <ComboBox.ItemTemplate>
                        <DataTemplate>
                            <TextBlock Text="{Binding FriendlyName}"/>
                        </DataTemplate>
                    </ComboBox.ItemTemplate>
                </ComboBox>
                <TextBlock Foreground="White" Margin="5" Text="Available AUDIO Sources" Grid.Column="1" Grid.Row="0"></TextBlock>
                <ComboBox x:Name="AudioSources" Grid.Column="1" Grid.Row="1" Margin="5">
                    <ComboBox.ItemTemplate>
                        <DataTemplate>
                            <TextBlock Text="{Binding FriendlyName}"/>
                        </DataTemplate>
                    </ComboBox.ItemTemplate>
                </ComboBox>
                <Border CornerRadius="8" Grid.ColumnSpan="2" Grid.Row="2" Width="500" Height="400">
                    <Border.Effect>
                        <DropShadowEffect Color="White" Direction="0" ShadowDepth="0" BlurRadius="15"/>
                    </Border.Effect>
                    <Rectangle x:Name="Webcam" Fill="White" Margin="5" Width="500" Height="400"/>
                </Border>
                <StackPanel Orientation="Horizontal" HorizontalAlignment="Center" Grid.ColumnSpan="2" Grid.Row="3">
                    <Button x:Name="StartStopWebcam" Content="Start Camera" Width="100" Height="35" Margin="5" Click="StartStopWebcam_Click"/>
                    <Button x:Name="CaptureWebcam" Content="Capture Image" Width="100" Height="35" Margin="5" Click="CaptureWebcam_Click" />
                    <Button x:Name="SaveImage" Content="Save Image" Width="100" Height="35" Margin="5" Click="SaveImage_Click" />
                </StackPanel>
            </Grid>
            <ScrollViewer Width="500" HorizontalScrollBarVisibility="Auto" VerticalScrollBarVisibility="Hidden">
                <ListBox x:Name="Snapshots">
                    <ListBox.ItemTemplate>
                        <DataTemplate>
                            <Image Source="{Binding}" Margin="5" Stretch="UniformToFill" Height="70"/>
                        </DataTemplate>
                    </ListBox.ItemTemplate>
                    <ListBox.ItemsPanel>
                        <ItemsPanelTemplate>
                            <StackPanel Orientation="Horizontal" HorizontalAlignment="Center" VerticalAlignment="Center"/>
                        </ItemsPanelTemplate>
                    </ListBox.ItemsPanel>
                </ListBox>
            </ScrollViewer>
        </StackPanel>
    </Grid>
</UserControl>

Our UI is complete and we can move on to our code, open the MainPage.xaml.cs file, we first start declaring two global variable like that:

        CaptureSource _captureSource;
        ObservableCollection _images = new ObservableCollection();

we define _captureSource to hold the instance of CaptureSource which is used to interact with AUDIO/VIDEO devices. _images variable is used to holds all captured frames from the webcam and will be the item source for the above said ListBox.

for declaring ObservableCollection<T> type you need to have using System.Collections.ObjectModel;

we also have to declare one public property named SelectedSnapshot, which holds the current captured frame from the live webcam feed and used to save image as jpg:

        private WriteableBitmap selectedSnapshot;
        public WriteableBitmap SelectedSnapshot
        {
            get { return selectedSnapshot; }
            set { selectedSnapshot = value; }
        }

We then add Loaded event handler in the default constructor, see the code below:

        public MainPage()
        {
            InitializeComponent();
            Loaded += new RoutedEventHandler(MainPage_Loaded);
        }

        void MainPage_Loaded(object sender, RoutedEventArgs e)
        {
            // Get list of the VIDEO Sources and bind
            VideoSources.ItemsSource = CaptureDeviceConfiguration.GetAvailableVideoCaptureDevices();

            // Get list of the AUDIO Sources and bind
            AudioSources.ItemsSource = CaptureDeviceConfiguration.GetAvailableAudioCaptureDevices();

            // Select the default devices
            if (VideoSources.Items.Count > 0)
                VideoSources.SelectedIndex = 0;

            if (AudioSources.Items.Count > 0)
                AudioSources.SelectedIndex = 0;

            // Creating CaptureSource
            _captureSource = new CaptureSource();

            // Handle CaptureImageAsync Completed event handler
            _captureSource.CaptureImageCompleted += (s, ev) =>
            {
                ProcessImage(ev.Result);
            };

            // Bind snapshots
            Snapshots.ItemsSource = _images;

            // Disable the capture button, it'll be enabled when capture source is ready
            CaptureWebcam.IsEnabled = false;
            SaveImage.IsEnabled = false;
        }

above method is very simple, which is used to initialize some of our application parts, we first set the item source of AUDIO/VIDEO comboBox, which are filled by getting all the devices available in the user’s machine. I also create a new CaptureSource instance, after that I handled CaptureImageCompleted event handler which is fired after capturing raw image by calling CaptureSource’s CaptureImageAsync() method. Finally I bind the ListBox to captured frames collection by setting it’s ItemSource property to _images.

In the above code you might think of ProcessImage(ev.Result) method, I have this method for processing raw captured frame, the code in that method is simple and does nothing but add the captured frame to _images collection and set the SelectedSnapshot property to the current captured frame.

        private void ProcessImage(WriteableBitmap bitmap)
        {
            _images.Add(bitmap);
            SelectedSnapshot = bitmap;
            SaveImage.IsEnabled = true;
        }

Move on to the “Start Camera” button click event, first I check the State property of the CaptureSource instance if it’s not started then I set the AUDIO/VIDEO Device to the CaptureSource instance from the available devices then I declared a variable of type VideoBrush which is used to paint the video content and set it’s source to CaptureSource instance and finally set it to the Fill property of Rectangle which paints the live video feed from the webcam.

To access the AUDIO/VIDEO devices on the user’s machine we need to have permission, we can request the user’s permission by calling the following code:

                        // Request user permission
                        if (CaptureDeviceConfiguration.AllowedDeviceAccess || CaptureDeviceConfiguration.RequestDeviceAccess())
                        {
                            if (_captureSource.VideoCaptureDevice != null)
                            {
                                _captureSource.Start();
                                StartStopWebcam.Content = "Stop Camera";
                                CaptureWebcam.IsEnabled = true;
                            }
                        }

When the above code is executed a dialog window is popup and asking for your permission to access the AUDIO/VIDEO devices, See screenshot below:

By clicking Yes you allowed application to access AUDIO/VIDEO devices, just after having permission we can see the live webcam feed in the center of the UI, Let’s see how can I look?

Ok once we started capturing we can stop it with the same button which stops capturing from the webcam. you noticed that “Capture Image” button is now activated after starting the webcam which takes snapshot from the current frame and displayed it in ListBox below, “Capture Image” button click event has the following code:

            // Verify the device is started
            if (_captureSource.VideoCaptureDevice != null && _captureSource.State == CaptureState.Started)
            {
                // Capture the current frame
                _captureSource.CaptureImageAsync();
            }
        }

In the code above I just checked the State property of the CaptureSource instance which must be Started if so then I called the CaptureImageAsync() method, which initiates an asynchronous image capture request. After taking snapshot “Save Image” button is activated which is used to save captured raw bitmap in jpg format on the local storage media, there is no built in function to do so that’s why I’m taking advantage of .NET Image Tools which have fine API for working with raw images. I have included the required binaries in the project itself so you don’t have to download it, but you can if you want complete set like documentation and other encoders [PNG, BMP, GIF].

To work with Image Tools we first need to reference the required assemblies which are listed below:

• ICSharpCode.SharpZipLib.Silverlight.dll
• ImageTools.dll
• ImageTools.IO.Jpeg.dll
• ImageTools.Utils.dll

Above assemblies are included in the project within the Lib folder which is available for download see the link below. Ok we now ready to save our webcam snapshots, first we need to have using statements in the top of the code file like following:

using ImageTools;
using ImageTools.IO.Jpeg;

In “Save Image” button click event I have following code which actually save the raw image in jpg format:

            // Gets the current captured raw bitmap
            var rawImage = SelectedSnapshot;

            // If image is selected in the Snapshots ListBox then set it as a save target
            if (Snapshots.SelectedItem != null)
                rawImage = (WriteableBitmap)Snapshots.SelectedItem;

            if (rawImage != null)
            {
                // Init the Save File Dialog
                SaveFileDialog saveDialog = new SaveFileDialog();
                saveDialog.Filter = "JPG Files (*.jpg, *.jpeg)|*.jpg;*.jpeg|All Files (*.*)|*.*";
                saveDialog.DefaultExt = ".jpg";
                saveDialog.FilterIndex = 1;

                // Show save dialog to the user
                if ((bool)saveDialog.ShowDialog())
                {
                    using (Stream stream = saveDialog.OpenFile())
                    {
                        // Convert raw captured bitmap to the image that Image Tools understand with the extension method
                        var image = rawImage.ToImage();
                        // Declare jpeg encoder
                        var encoder = new JpegEncoder();
                        // Set the image quality
                        encoder.Quality = 90;
                        // Finally encode raw bitmap and save it as a jpg image
                        encoder.Encode(image, stream);
                        // Close the stream
                        stream.Close();
                    }
                }
            }

The code above again is very simple and I commented it well so I don’t think to described it for you, if you any problem then discuss it in the comments. I am done here, hope you like it.

Finally, you can download the full source code below:
